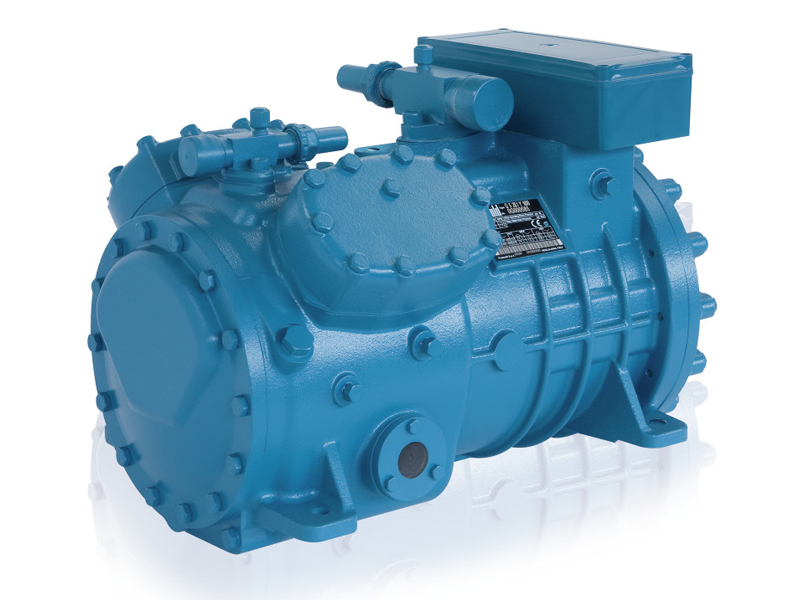

Q7-36.1Y
Product code:
C5104
Manufacturer code
Q7-36.1Y
General Information
| Product Group : | Semi Hermetic |
|---|
Compressor
| Displacement : | 35.9 m³/h |
|---|
Connections
| Discharge Line Connection : | 28 mm |
|---|---|
| Suction Line Connection : | 35 mm |
Electrical
| LRA : | 87.3 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 328 mm |
|---|---|
| Weight : | 79 kg |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 14160 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 9970 W |
|---|
Oil
| Oil Charge : | 1600 cc |
|---|
