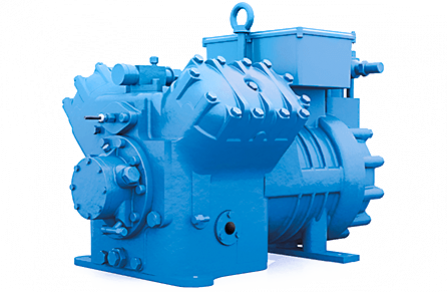

CP V 30 84 Y
Product code:
C5192
Manufacturer code
3084 Y N/S 3B000393
General Information
| Product Group : | Semi Hermetic |
|---|
Compressor
| Displacement : | 83.8 m³/h |
|---|
Connections
| Discharge Line Connection : | 35 mm |
|---|---|
| Suction Line Connection : | 54 mm |
Electrical
| LRA : | 132.6 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 463 mm |
|---|---|
| Weight : | 187 kg |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 29980 W |
|---|---|
| R134a Nominal Capacity -10°C : | 23277.963999999996 W |
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 20940 W |
|---|
Oil
| Oil Charge : | 4000 cc |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical literature | 535.51 KB | |
| Brochures | 7.01 MB |
