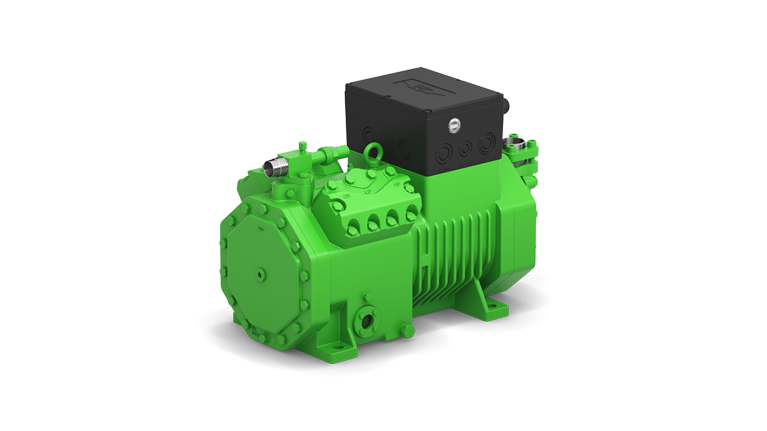

6FE-44Y-40P ECOLINE COMPRESSOR
![Bitzer](https://www.realcold.co.nz/media/83/03/ef/1709142253/BitzerLogo.jpg)
Product code:
BZJ04-387
Manufacturer code
J04-387
General Information
Product Group : | Semi Hermetic |
---|
Capacity R134a
R134a Capacity -10°C : | 47.05 kW |
---|
Capacity R404A
R404A Capacity -10°C : | 79.9 kW |
---|---|
R404A Capacity -35°C : | 27.7 kW |
Compressor
Displacement : | 151.6 m³/h |
---|
Connections
Discharge Line Connection : | 42 mm |
---|---|
Suction Line Connection : | 54 mm |
Cooling Capacity R134a
R134a Cooling Capacity Rated -10°C : | 47.05 kW |
---|
Electrical
Max Current : | 83.2 A |
---|---|
Voltage : | 380-420/3/50 V/Ph/Hz |
Measurements
Weight : | 241 kg |
---|
Oil
Oil Charge : | 4.75 L |
---|
Performance
Nominal HP : | 44 HP |
---|
Product information
File name | Extension | Size |
---|---|---|
Brochures | 11.13 MB |
