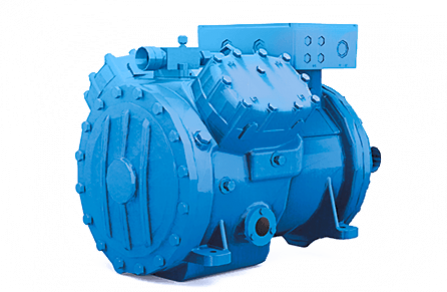

S10-52Y
Product code:
C5134
Manufacturer code
S10-52Y
General Information
| Product Group : | Semi Hermetic |
|---|
Compressor
| Displacement : | 50.4 m³/h |
|---|
Connections
| Discharge Line Connection : | 28 mm |
|---|---|
| Suction Line Connection : | 35 mm |
Electrical
| LRA : | 59.1 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 405 mm |
|---|---|
| Weight : | 120 kg |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 19580 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 13720 W |
|---|
Oil
| Oil Charge : | 2900 cc |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Brochures | 7.01 MB |
