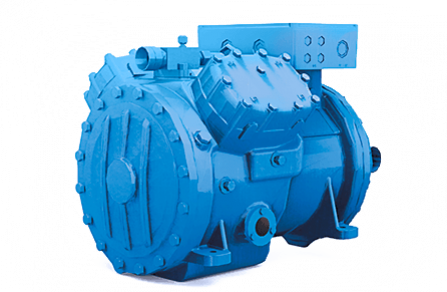

S 15 56 Y
Product code:
C5142
Manufacturer code
S 15 56 Y
General Information
| Product Group : | Semi Hermetic |
|---|
Compressor
| Displacement : | 56 m³/h |
|---|
Connections
| Discharge Line Connection : | 28 mm |
|---|---|
| Suction Line Connection : | 41.3 mm |
Electrical
| LRA : | 74.8 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 405 mm |
|---|---|
| Weight : | 130 kg |
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 21720 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 15080 W |
|---|
Oil
| Oil Charge : | 2900 cc |
|---|
