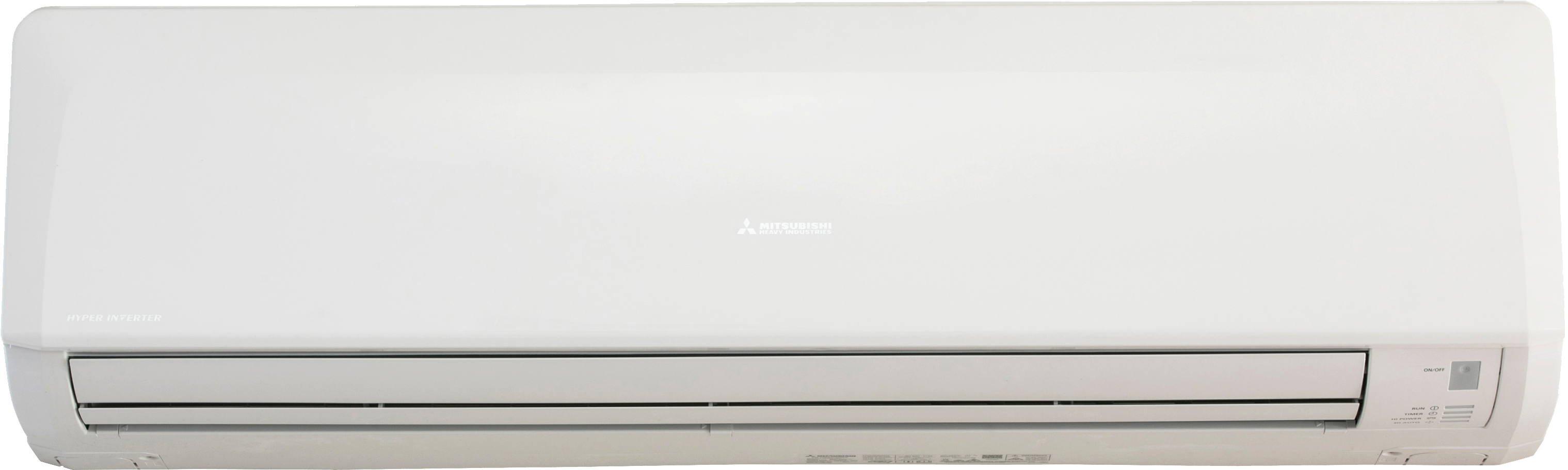

MHI BRONTE 8KW SRK80ZRA-W
Product code:
AC3076/I
Manufacturer code
SRK80ZRAW
| Product Group : | High Wall |
|---|
General Information
| Product Group : | High Wall |
|---|---|
| Condensate Water Pump Provided : | No |
| Pre-Equipped Wifi : | No |
| Remote Control : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 1242 m³/h |
|---|
Capacity
| Cooling Capacity : | 8.0 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 2.3/8.0/9.5 kW |
| Heating Capacity : | 9.0 kW |
| Heating Capacity (Min/Rated/Max) : | 2.1/9.0/11.2 kW |
| Heating Capacity Min/Max : | 2.1/11.2 kW |
Connections
| Pipe Diameter Gas Side : | 15.88 in |
|---|---|
| Pipe Diameter Liquid Side : | 6.35 mm |
Cooling Capacity R32
| R32 Cooling Capacity Max : | 9.5 kW |
|---|---|
| R32 Cooling Capacity Min : | 2.3 kW |
| R32 Cooling Capacity Rated : | 8.0 kW |
Description
| Short Description : | MHI BRONTE 8KW SRK80ZRA-W Indoor |
|---|
Electrical
| Input (Cooling) : | 2.22 kW |
|---|---|
| Input (Heating) : | 2.40 kW |
| Max Current : | 17.0 A |
| Power Input (Heating/Cooling) : | 2.22/2.40 kW |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Voltage : | 230 V |
| Voltage 50Hz : | 230 V |
Energy Efficiency/Performance
| COP : | 3.75 |
|---|---|
| EER : | 3.60 |
| Energy Label (Cooling) : | 3 Average |
| Energy Label (Heating) : | 2.5 Average |
Heating Capacity R32
| R32 Heating Capacity Max : | 11.2 kW |
|---|---|
| R32 Heating Capacity Min : | 2.1 kW |
| R32 Heating Capacity Rated : | 9.0 kW |
Measurements
| Depth : | 262 mm |
|---|---|
| Height : | 339 mm |
| Net Weight : | 15.5 kg |
| Weight : | 15.5 kg |
| Width : | 1197 mm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 15 m |
| Max Piping Length : | 30 m |
| Pipe Dimension : | 6.35 x 15.88 mm |
Power Input R32
| R32 Power Input Rated Cooling : | 2.22 kW |
|---|---|
| R32 Power Input Rated Heating : | 2.40 kW |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 1.6 kg |
| Refrigerant Pipe Size : | 6.35x15.88 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 38/43/46/25 dB(A) |
|---|
Product information
MHI BRONTE 8KW SRK80ZRA-W Indoor
